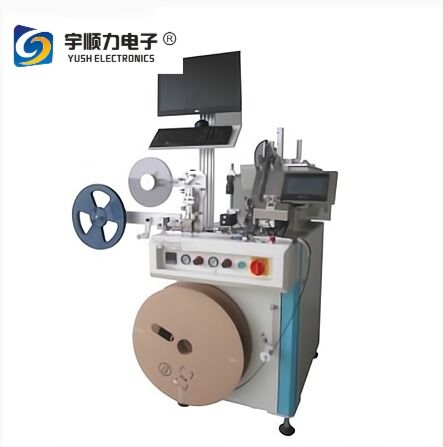

YS-12T-Automatic Tape and Reel Packaging Equipment

جزئیات محصول

محل منبع: گوانگدونگ، چین

نام تجاری: YUSH

گواهی: CE

شماره مدل: YS-12T

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 مجموعه

قیمت: $6,000 / set

بهترین قیمت رو بدست بیار
برجسته کردن:

automatic tape and reel machine,PCB depaneling equipment with warranty,YS-12T tape reel packaging

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

وزن:
160 کیلوگرم
ولتاژ:
220 VAC
منبع تغذیه:
AC200V/50Hz
فشار هوای کاری:
0.40 ~ 0.6 مگاپاسکال
ظرفیت:
3K-15K UPH
سیستم کنترل:
کنترل کننده منطقی قابل برنامه ریزی + صفحه لمسی + موتور سروو
کنترل دما:
کنترل دمای PID
تغذیه و دریافت:
دیسک های لاستیکی و دیسک های کاغذی مطابق با استاندارد EIA-481
عرض نوار:
12.16 میلی متر
فرم مهر و موم:
مهر و موم سرد و گرم
ولتاژ ورودی:
AC220V/50Hz
حداکثر جریان:
10A
اندازه ماشین:
2030*528*583 (L*W*H)
وزن خالص:
160 کیلوگرم
پیکربندی انتخابی:
سیستم تشخیص تصویر
وزن:
160 کیلوگرم
ولتاژ:
220 VAC
منبع تغذیه:
AC200V/50Hz
فشار هوای کاری:
0.40 ~ 0.6 مگاپاسکال
ظرفیت:
3K-15K UPH
سیستم کنترل:
کنترل کننده منطقی قابل برنامه ریزی + صفحه لمسی + موتور سروو
کنترل دما:
کنترل دمای PID
تغذیه و دریافت:
دیسک های لاستیکی و دیسک های کاغذی مطابق با استاندارد EIA-481
عرض نوار:
12.16 میلی متر
فرم مهر و موم:
مهر و موم سرد و گرم
ولتاژ ورودی:
AC220V/50Hz
حداکثر جریان:
10A
اندازه ماشین:
2030*528*583 (L*W*H)
وزن خالص:
160 کیلوگرم
پیکربندی انتخابی:
سیستم تشخیص تصویر
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
