خونه > محصولات > PCB ماشین Depaneling > V Groove Separator Machine PCB Depanelizer Tool -YSV-1A

V Groove Separator Machine PCB Depanelizer Tool -YSV-1A

جزئیات محصول

محل منبع: جیانگ سو، چین

نام تجاری: YUSH

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 مجموعه

قیمت: $10,000 / set

بهترین قیمت رو بدست بیار
برجسته کردن:

V groove PCB separator machine,YSV-1A depaneling tool,PCB depanelizer with warranty

,

YSV-1A depaneling tool

,

PCB depanelizer with warranty

وزن:
55 کیلوگرم
قدرت:
10 کیلو وات
ولتاژ:
110/220 V
سرعت را به حداقل برسانید:
100/200/300/500mm/s
شماره قطب:
1
تایپ کنید:
هوا
اندازه:
۷۸۰ × ۴۶۰ × ۵۶۰ میلی متر
ضخامت:
0.6-3.5 میلی متر
مدل:
YSV-1a
طول:
460 یا 600 میلی متر
سرعت:
100/200/300/500mm/s
منبع تغذیه:
110/220 ولت
اندازه ماشین:
770*510*450 میلی متر
اجزای اصلی:
تیغه
فاصله قابل تنظیم:
بله
وزن:
55 کیلوگرم
قدرت:
10 کیلو وات
ولتاژ:
110/220 V
سرعت را به حداقل برسانید:
100/200/300/500mm/s
شماره قطب:
1
تایپ کنید:
هوا
اندازه:
۷۸۰ × ۴۶۰ × ۵۶۰ میلی متر
ضخامت:
0.6-3.5 میلی متر
مدل:
YSV-1a
طول:
460 یا 600 میلی متر
سرعت:
100/200/300/500mm/s
منبع تغذیه:
110/220 ولت
اندازه ماشین:
770*510*450 میلی متر
اجزای اصلی:
تیغه
فاصله قابل تنظیم:
بله

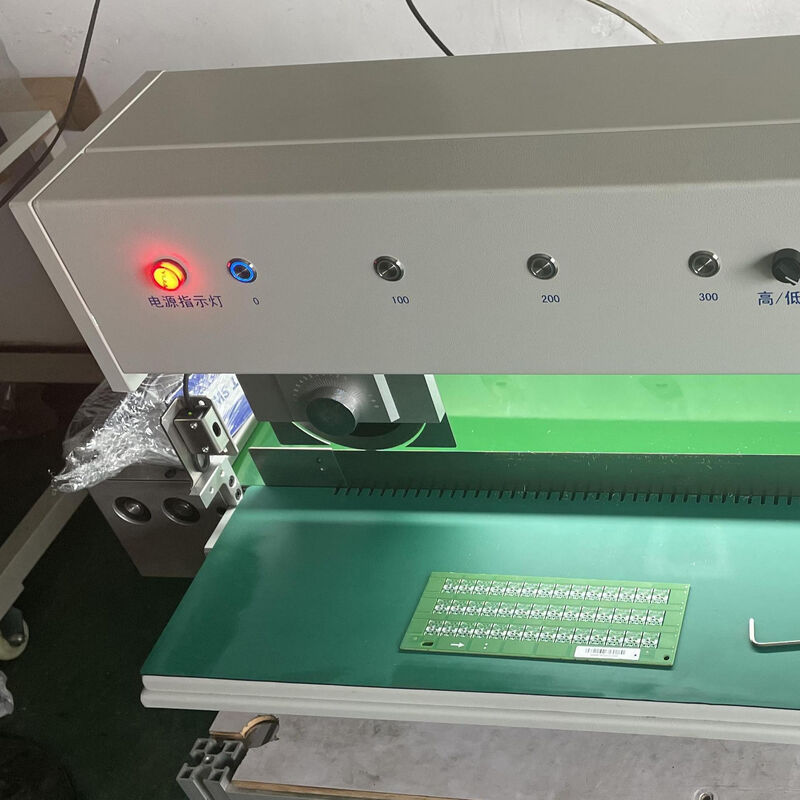

V Groove Separator Machine PCB Depanelizer Tool -YSV-1A
V-Groove Separator Machine PCB Depanelizer Tool - YSV-1A
Product Specifications
ModelYSV-1A
Length (mm)460 or 600
Speed (mm/s)100/200/300/500
Thickness (mm)0.6-3.5
Power Supply (V)110/220
Size (mm)770×510×450
Weight55kg
V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 0 V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 1
Key Features
  • Separate pre-scored PCB assembly without stress on either PCB or components
  • One-touch programming of cut length with digital display
  • Separating speed adjusted by rotary knob
  • Handles intermittent scoring or cut-outs
  • Precisely cuts boards with projected components
  • Large stainless steel platform on both sides of cutting blade prevents board wobble
  • Table height and angle are adjustable
  • Optional PCB conveyor belt to remove finished boards
  • Adjustable clearance between circular and linear blades to fit different groove depths
  • Compensates for blade wear over time
V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 2 V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 3
Competitive Advantages
  • YSV-1A printed circuit board depaneling original manufacturers
  • 24-hour technical support services
  • Rapid complaint resolution - 30-minute response time to customers
  • Depanel experts providing professional PCB solutions
