YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Name: YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-G6565
Price: 30000 USD
Availability: InStock

جزئیات محصول

محل منبع: گوانگدونگ

نام تجاری: YUSH

شماره مدل: YS-G6565

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1

قیمت: USD30000

زمان تحویل: 20 روز کاری

شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union

قابلیت ارائه: 100

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:

وزن:	۵۰۰ کیلوگرم	مدل:	YS-G6565
دقت موقعیت یابی:	± 2μm	قدرت لیزر:	QCW-150W/1500W
اندازه بستن:	680mm*720mm

وزن:	۵۰۰ کیلوگرم
مدل:	YS-G6565
دقت موقعیت یابی:	± 2μm
قدرت لیزر:	QCW-150W/1500W
اندازه بستن:	680mm*720mm

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Equipment Introduction

G6565Laser cutting machine is a new generation of laser cutting machine, compared with the previous models in terms of performance or humanized operation design, has been significantly improved. According to the market demand of customers, the overall performance of the equipment has been raised to a new level. While improving the cutting speed, it also ensures excellent cutting quality. The performance and operability are completely comparable to imported equipment, and the cost performance is much higher than imported machines.

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine 0

Parameter

Machine Model	YS-G6565
Laser Power	QCW-150W/1500W
Laser Wavelength	1070nm
Beam Quality	M²<1.1
Cutting Speed	About 23000 pad/h
Working Range	650mm*650mm
Clamping Size	680mm*720mm

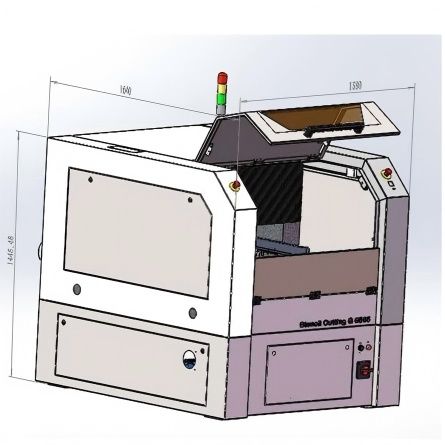

Overall Dimension	1640mm1380mm1500mm
Cutting Accuracy	±0.01mm (Specified material)
Positioning Accuracy	±2μm
(Repeated positioning accuracy)	±2μm
Cooling Way	Air cooling/water cooling
(Auxiliary cutting gas)	Oxygen 8-10Kg Compressed air16Kg

Product Features

1.Adopting double drive structure of linear motor with iron core, high inertia and large thrust, the maximum acceleration can reach 2.0G, ensuring high-speed and accurate action of the equipment;

2.The use of American imported drivers, advanced adjustment andsetting algorithms greatly improve cutting performance and ensure processing accuracy;

3.Imported IPG fiber laser, stable output power, long life, maintenance-free, vertical smooth processing hole wall, but also to ensure the stability of the processing process;

4.The whole machine adopts natural marble as the matrix structure,which is safe and stable;

5.Equipped with high-precision grating ruler full closed-loop system,real-time feedback, reduce repeated positioning error;

6.Convenient operation: the man-machine interface is simple and easy to understand, can process any plane graphics, the equipment is small in size;

7.The equipment has high reliability and can be continuously and stably produced for 24 hours to meet the needs of industrial mass production and process in Customized customization ability, can be tailored to customer needs to

create exclusive models;

Introduction of main modules of equipment:

1.Motion Module:

2.Rack Platform

3.Specification
