SMT Line Wave Soldering Machine,700kg Capacity Wave Soldering Machine
, 700kg Capacity Wave Soldering Machine

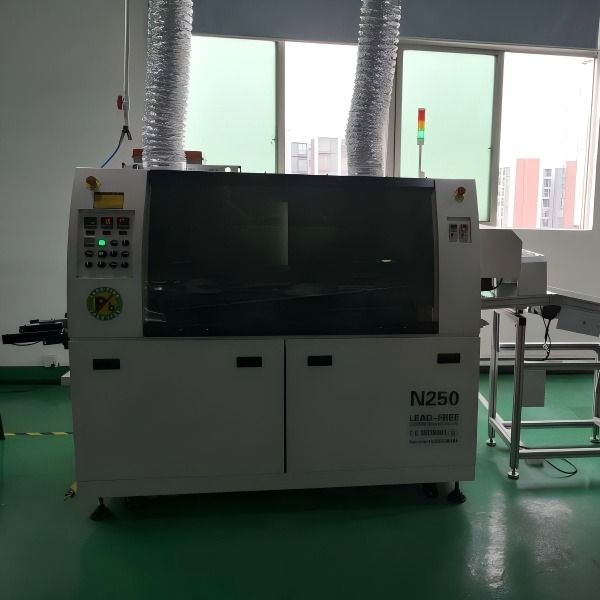

SMT Line Wave Soldering Machine YS-N250 700kg Capacity
INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC
control, accurate and reliable.
4.PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit
board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the
7.quality of welding PCB board.
8.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
9.Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
10.Preheating system uses three independent temperature control so that ensure the excellent heat preservation,
temperature uniformity, temperature difference no more than ±2ºC.
11.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
12.automatic claw cleaning function ensure the cleanliness of claws.
13.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’
safety.
