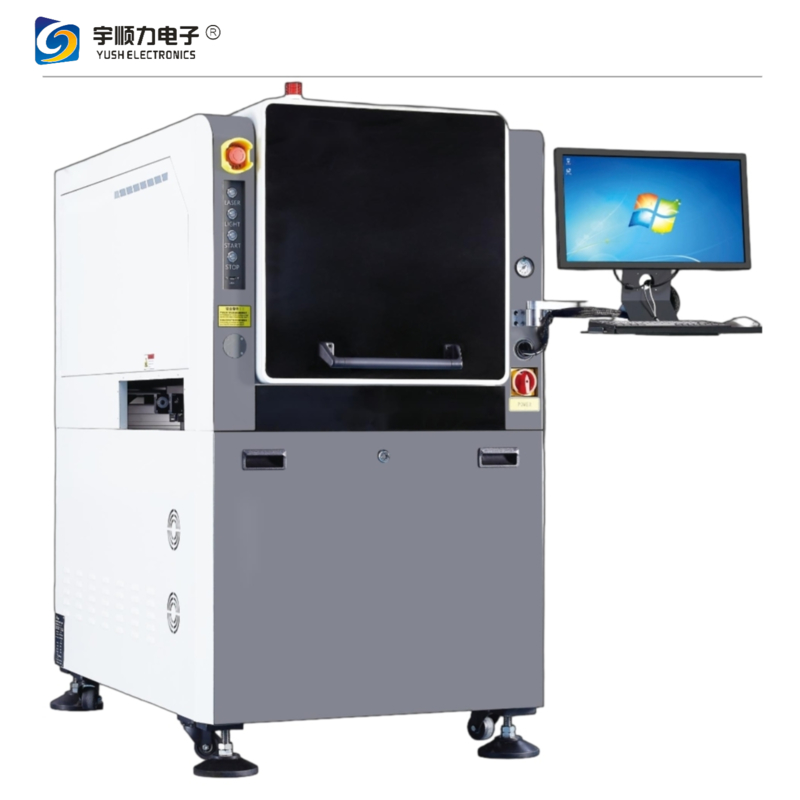

Name: YSL-510 SMT In Line Single-Laser Single Lane Laser Marking Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-510
Price: 30000 USD
Availability: InStock

جزئیات محصول

محل منبع: گوانگدونگ

نام تجاری: YUSH

شماره مدل: YSL-510

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1

قیمت: USD 30000

زمان تحویل: 20 روز کار

شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union

قابلیت ارائه: 1000

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                SMT laser marking machine,single-lane laser marking machine,inline laser marking machine with warranty, single-lane laser marking machine, inline laser marking machine with warranty


YSL-510 SMT In Line Single-Laser Single Lane Laser Marking Machine

Technical Parameters

Model	YSL-510(Single-head coaxial vision)
Wave Length	355nm532nm1064nm10640nm
Service Power	UV (3w,5w) Green (7w,10w) Fiber (10w,20w,30w) Co2(10w,20w,30w)
Laser Marking Range	5050-510460mm
PCB Size	510*460mm
Marking Speed	The speed can reach 7000mm/s (for example, white ink processing size 3 * 3mm with a 55 digit QR code, completed within 1 second)
Marking Position Accuracy	±0.05mm(Can be customized according to customer requirements)
Repeated Positioning Accuracy	±0.02mm
Visual System	Coaxial hawk-eye visual correction function, for standard graphics acquisition, for FPC, soft and hard board and deformation of the position for accurate marking
PCB Thickness	0.5-5mm (thicker specifications can be customized)
Electricity Demand	220V/50Hz, total power ≈2500W
One-dimensional Code Type	Code 39,Code 25,Code 93, Code 128,EAN-13, EAN-8, ISBN and other
Type Of QR Code	Datamatrix,QR Code,micro QR Code,PDF417,Code49,Code 16k and other common QR code
Can Process QR Code Size	1.5mmx1.5mm~20mmx20mm(The minimum size of the two-dimensional code can be processed depends on the content of the two-dimensional code)
Character Type	Support TrueType fonts, single-line fonts (JSF), SHX fonts, Dot matrix fonts(DMF)
Support File Format	DXF,PLT, Excel, TXT and other common file formats
Automatic Positioning Function	Support automatic photo, support 2, 3, 4 point positioning mode
Overall Dimensions And Weight	92015001500mm, Weight:750KG
Ambient Temperature	Ambient temperature:20-28℃,humidity:30%-60%
Barometric Pressure	Compressed air:0.4-0.6Mpa
