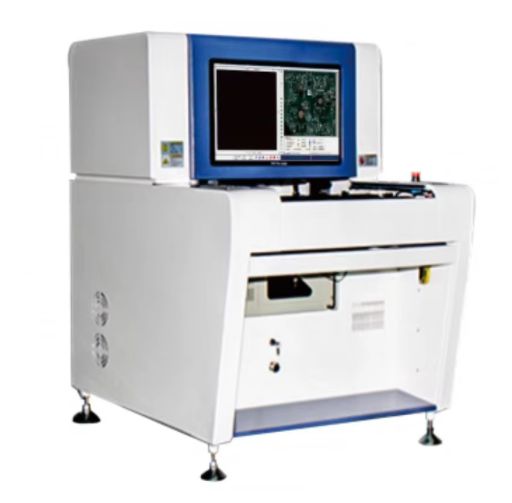

Name: High Quality and High Efficiency Standard Offline AOI
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-A410
Price: 35000 USD
Availability: InStock

جزئیات محصول

محل منبع: چین ، گوانگدونگ

نام تجاری: YUSH

شماره مدل: YS-A410

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1

قیمت: USD35000

زمان تحویل: 20 روز کار

شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union

قابلیت ارائه: 1000

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                Standard Offline AOI machine,Auto Insertion Machine with warranty,High Efficiency AOI inspection system, Auto Insertion Machine with warranty, High Efficiency AOI inspection system


ولتاژ:	220 ولت	قدرت (W):	6 کیلو وات
وزن:	310 کیلوگرم	بعد (lwh):	86810331340mm
شماره مدل:	YS-A410

ولتاژ:	220 ولت
قدرت (W):	6 کیلو وات
وزن:	310 کیلوگرم
بعد (lwh):	86810331340mm
شماره مدل:	YS-A410

High Quality and High Efficiency Standard Offline AOI

Product Specifications

Voltage	220V
Power	6KW
Weight	310KG
Dimensions (L×W×H)	868 × 1033 × 1340mm
Model Number	YS-A410

Product Features

Economical and practical AOI solution
High precision detection platform design
Fast programming debugging integration
Automatic recognition of Top and Bottom sides
Professional SPC system

Technical Parameters

Inspection	Using multiple algorithms synthetically such as WIDM, Color Image contrast technology, Color extracting technology, similarity, two-value handling technology, OCR/OCV and so on
Camera	Colour camera: 20 μm (15μm for Optical)
Lamp-house	Ring RGB LED flash lamp-house
Image Processing Speed	0201 Chip - <10ms Per-image Time - <170ms
Inspection Items	Paste Printing Defects: Misaligned, overflow, insufficient, pasting open, stain Component Defects: Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged Solder Defects: Overflow, insufficient, short solder, stain
Anti Static Measures	Anti-static electric outlet, anti-static wreath
PCB Size	25 × 25 mm - 480 × 330mm (Can be customized)
Machine Dimensions	868 × 1033 × 1340mm
Power Supply	AC220V ±10%, single phase 50/60HZ, power consumption 600W
Weight	~310kg
PCB Thickness	0.5mm-5mm
PCB Warp Tolerance	± 2mm
Computer	CPU: Intel dual-core, Memory: 4G, Hard disk: 1T
Display	22-inch TFT
Component Clearance	TOP <28mm, BOT <75mm
Characteristics	WDM, study OK template, automatically set template imaging, identify data and error numerical value
Working Environment	Temperature 10-40℃, humidity 30-80%RH
